Standard GPS Mount by MotoPumps

The MotoPumps® GPS Mount is strong, lightweight, all weather, AMPs pattern so it fits all standard GPS cradles on the market. Including all Zumo models, the 200, 220, 346, 390, 395, 396, 400, 450, 500, 550, 590, 595, 660, 665, XT, plus all Montana models with AMPs pattern mounts, including 600, 610, 650, 680, 700 and 750 as well as the Tread 5.5.

MotoPumps® developed this mount after being frustrated with the heavy, fragile, overly large, complex and expensive offerings. Machined from DuPont Delrin™, the mount is strong, stable, light and 100% weather/corrosion resistant. These mounts are made in beautiful Upstate NY.

Hardware, specs and instructions included. Hardware is stainless steel and compatible with motorcycle cradles from Garmin for the Zumo series and others using the standard AMPs pattern.

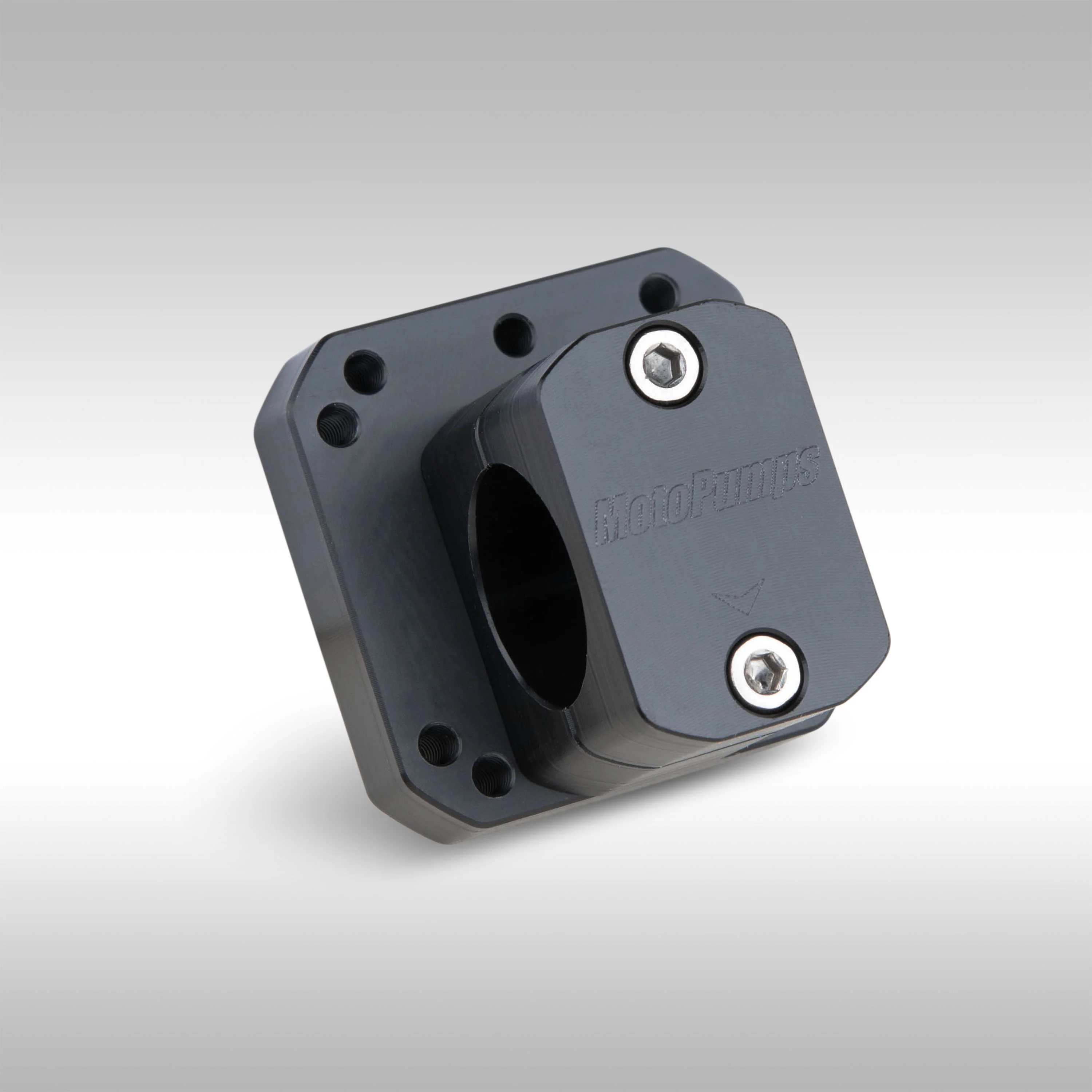

Your kit consists of a 3 piece machined Delrin™ mounting plate, stainless steel hardware, 3mm allen wrench and instruction sheet. Please read this sheet thoroughly before mounting your device.

Tighten hardware to 7 INCH LBS of torque. If you don’t have an inch lbs torque wrench, that is snug enough to hold, no more. Tight enough to keep your device from moving or rotating on the vehicle cross bar, but not arm tight, not wrist tight, but firmly hand tight with the provided allen key.  The stainless and Delrin™ work together to hold snug without vibrating loose.

Hardware List:

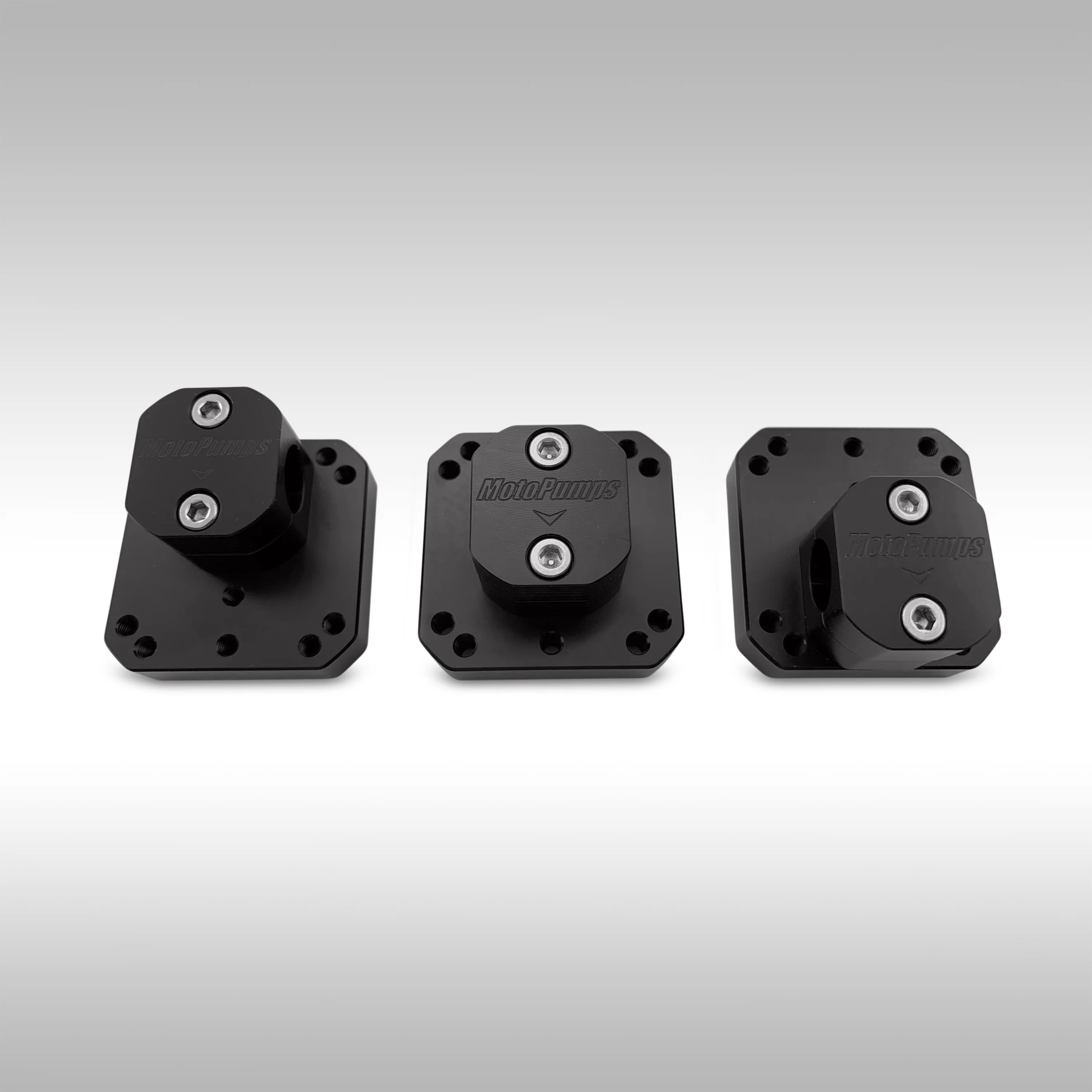

One (1) machined base plate with standard AMPs pattern and 3 position Cross Bar Mount **The AMPs hole pattern is an industry standard hole configuration. It consists of four (4) holes located in a rectangular pattern spaced at 1.181" by 1.496" (30mm by 38mm). In most cases the AMPS pattern consists of 8 holes, but is sometimes 4 or 2. This allows the mount to be fitted in both a horizontal or vertical orientation. Most third party mounting devices and cradles have the AMPs hole pattern.

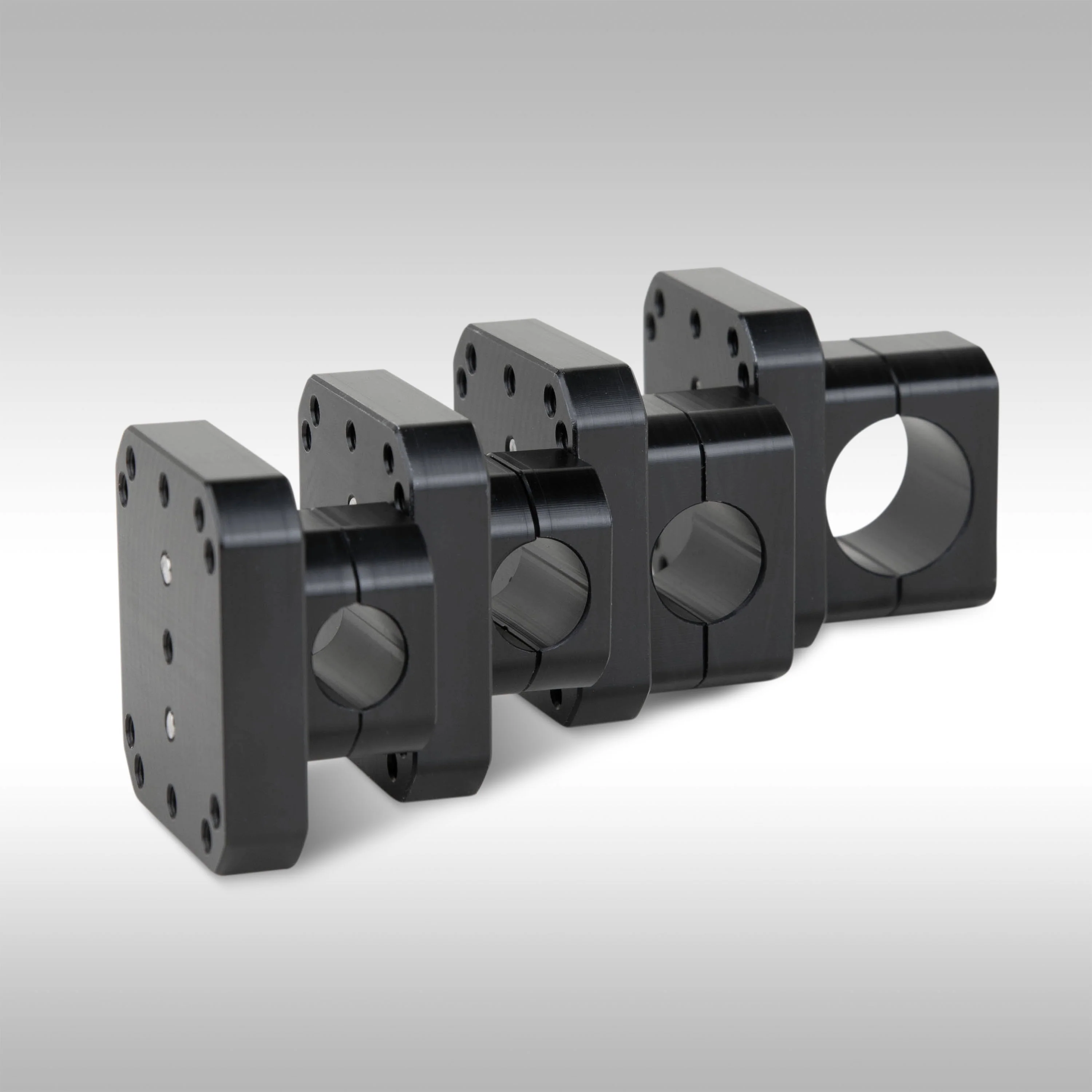

One (1) 12mm, 14mm, 16mm, 22mm, 25mm, or 28mm cross bar clamp set depending on the kit you choose.

Six (6) M4 x .7 x 25mm A2 Stainless Steel Socket Cap Screws (2 hold the cross bar clamps to the base plate, 4 mount your device or GPS cradle, RAM mount or other hardware to the base plate)

Four (4) stainless Steel Washers

One (1) M3 Hex / Allen wrench for the included socket cap screws.

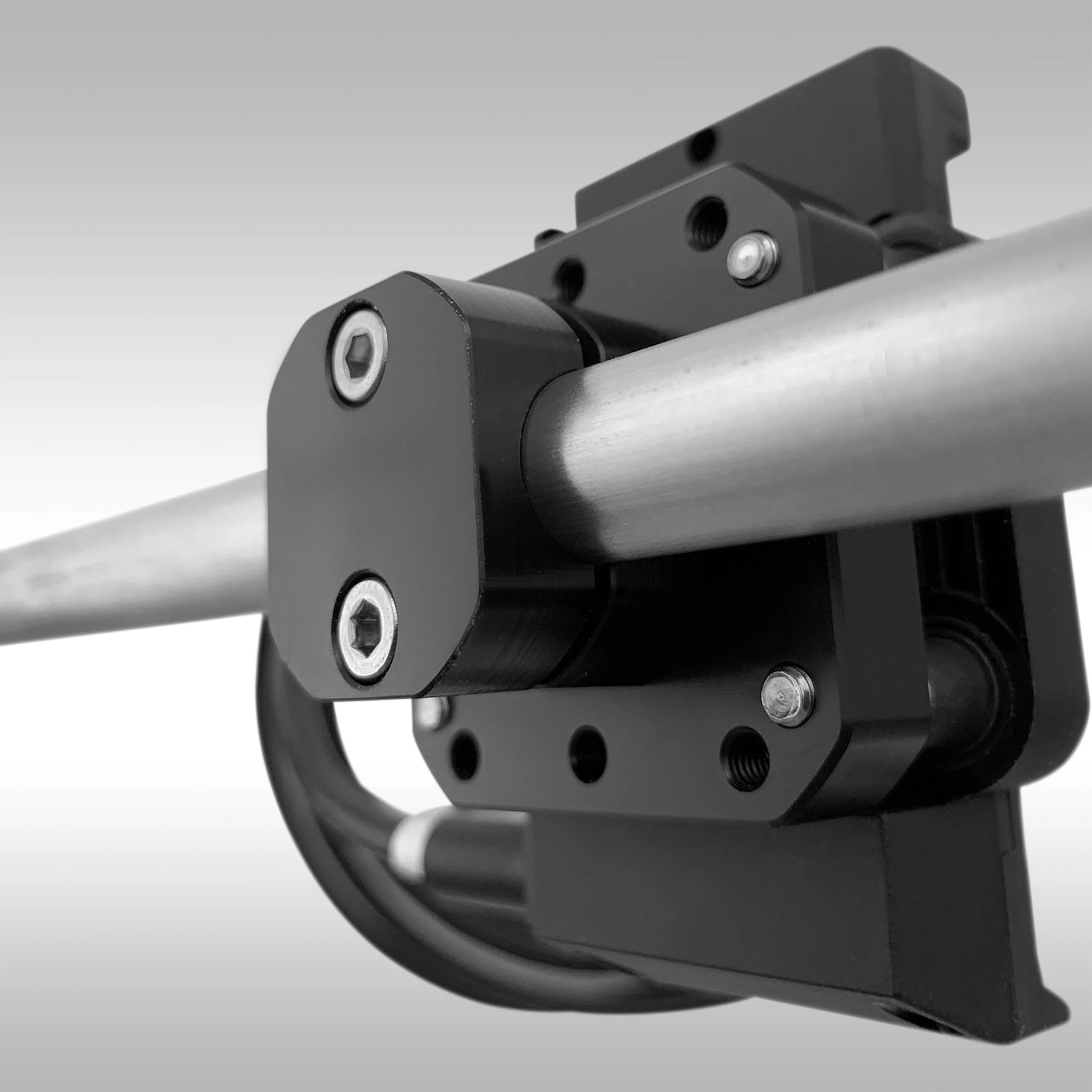

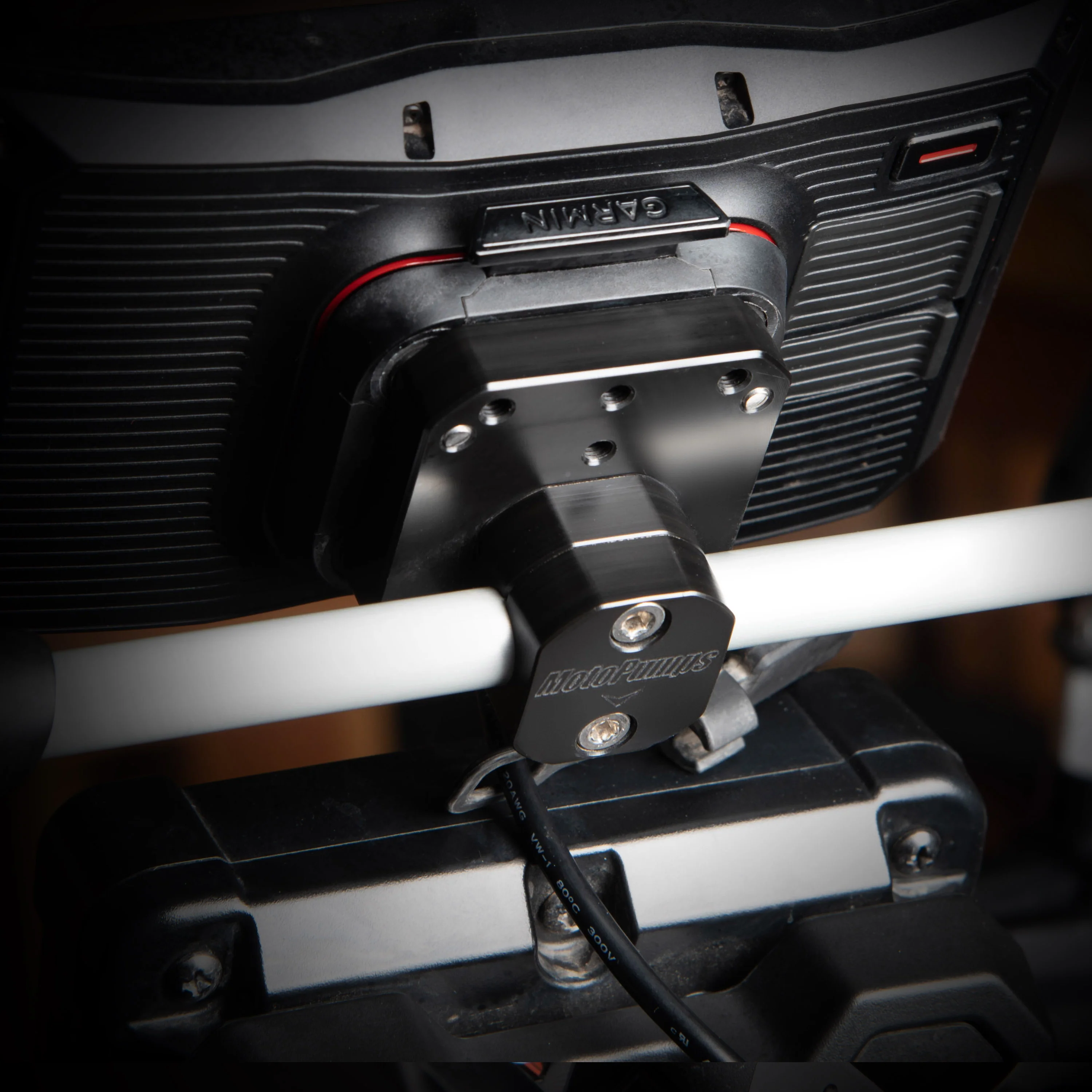

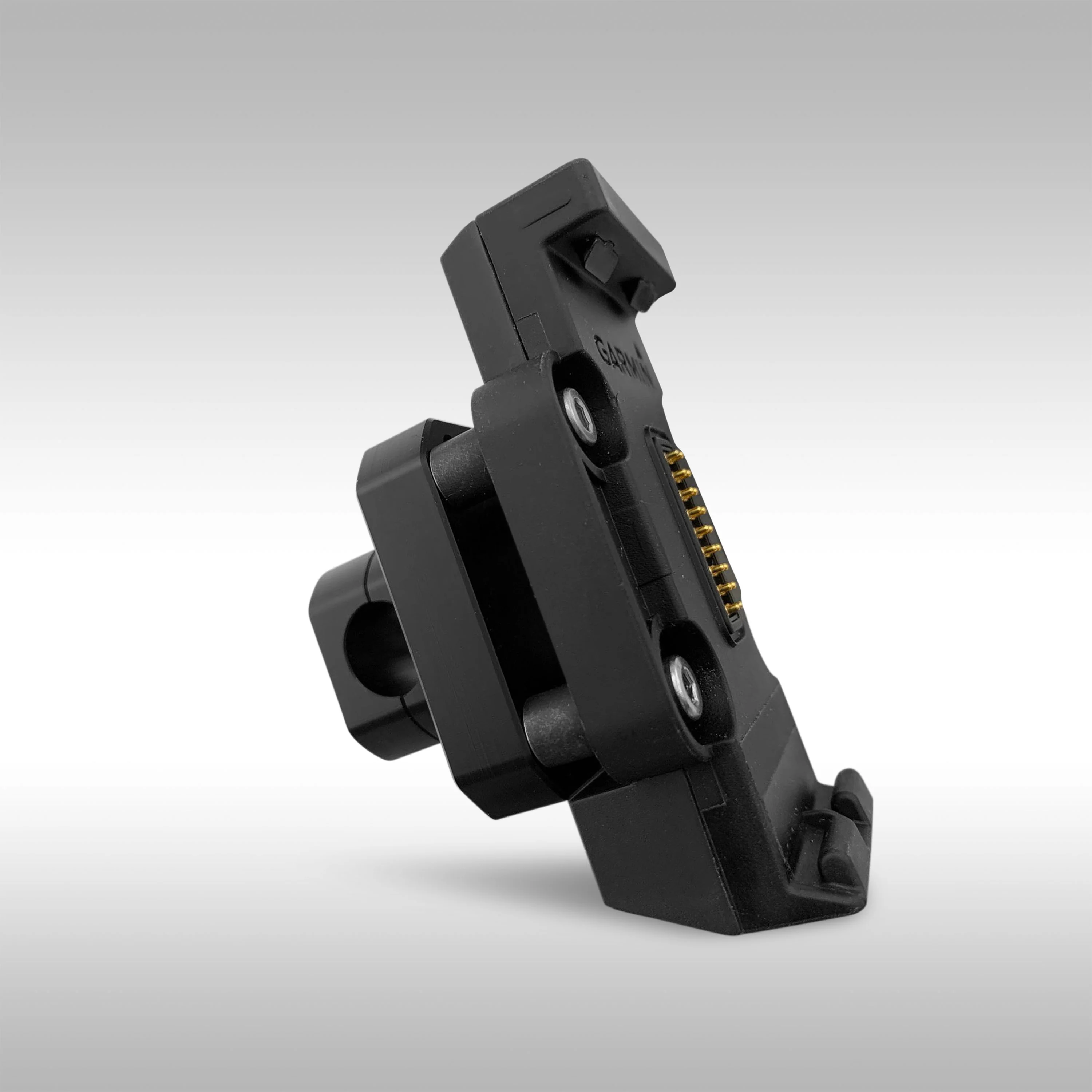

Note: GPS Cradle not included. The pictured GPS cradle is for a Garmin Zumo 550 and came with the GPS unit when purchased new.

Known Fitments:

12mm

• Honda Africa Twin 2016-19
• Camel ADV Brace Kit for AT
• Honda CB500x 2019-20
• BMW R1200 GS / A ‘14-18
• All BMW R1250 GS and GSA
• All Yamaha Tenere 700
• 2014 Yamaha Super Tenere XTZ1200
• Aprilia Tuareg 660.

14mm

• 2022+ Kawasaki KLR650 (all models)

16mm

• BMW R1200 GS and GSA ‘05-’13
• Benelli TRK 502X 2021
• 2014-2017 BMW F800 GS Adventure

22mm / 7/8”

• All VStrom 1050 models.
• Honda CFR250L Rally
• Honda CRF300L Rally
• All 7/8” handlebars


25mm 1”

• All 1 inch handlebars


28mm / 1 1/8"

• All Inch and an eighth handlebars


Pro Tip - If you don’t have a caliper to measure the mounting point on your bike, get an open ended wrench out and see what fits over the mounting point.
